Solutions

NEOseq_ACTION®

What is

NEOseq_ACTION®?

NEOseq_ACTION® is

medycvi-icon-1

NEOseq_ACTION® is a reagent that tests single nucleotide variations of 265 genes related to actionable rare genetic diseases.

medycvi-icon-2

Through NEOseq_ACTION®, DNA can be extracted from 1 DBS (Dried blood spot) or 100 ul of blood from a child and 265 genes can be tested at once using Next Generation Sequencing.

medycvi-image-1

What are the advantages

ofNEOseq_ACTION®?

neoseq-image2NEOseq_ACTION® are
It can be used for newborns who are difficult to collect blood from because it can analyze small amounts of samples.
It can test a total of 265 target genes associated with over 220 rare diseases with available treatments or actionable conditions.

How NEOseq_ACTION®

does it work?

medycvi-image-1

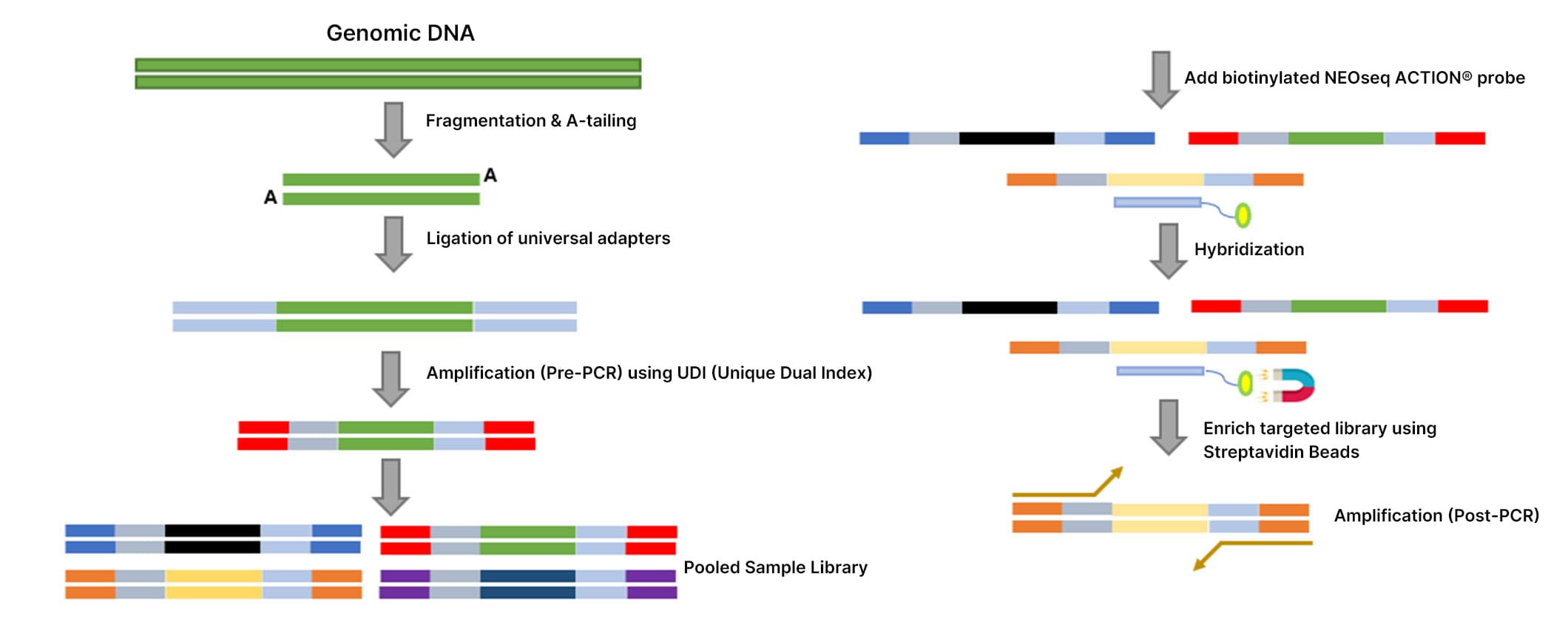

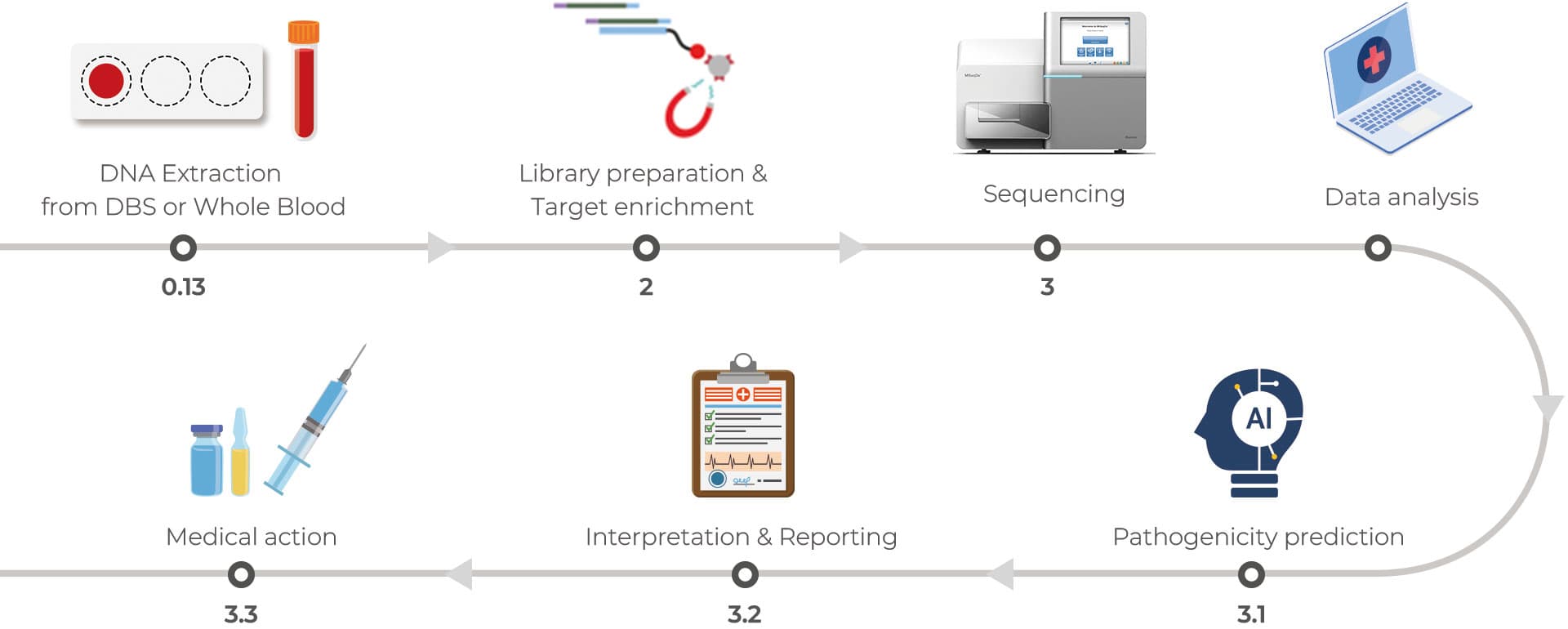

It consists of 5 Parts and proceeds as follows:Part 1 : DNA is extracted from DBS (Dried Blood Spot) or blood, and its concentration is measured.Part 2 : During the library preparation stage, the measured DNA is used to produce libraries suitable for analysis on NGS instruments. Each DNA is amplified and synthesized DNA oligos, known as Adapters, are attached for amplification in PCR machines.Part 3 : In the target enrichment stage, the prepared libraries undergo target selection to select targets of 265 genes related to rare diseases. These are then amplified again to complete libraries for sequencing analysis.Part 4 : Using next-generation sequencing instruments, sequencing is performed by imaging with fluorescent-labeled dideoxynucleotides specific to each type. The obtained data is converted into text files for mutation analysis.Part 5 : NGS raw data produced from libraries prepared using NEOseq_ACTION® reagents are analyzed for mutations using the Medy_CVi® analysis software, and reports including annotations are generated.
